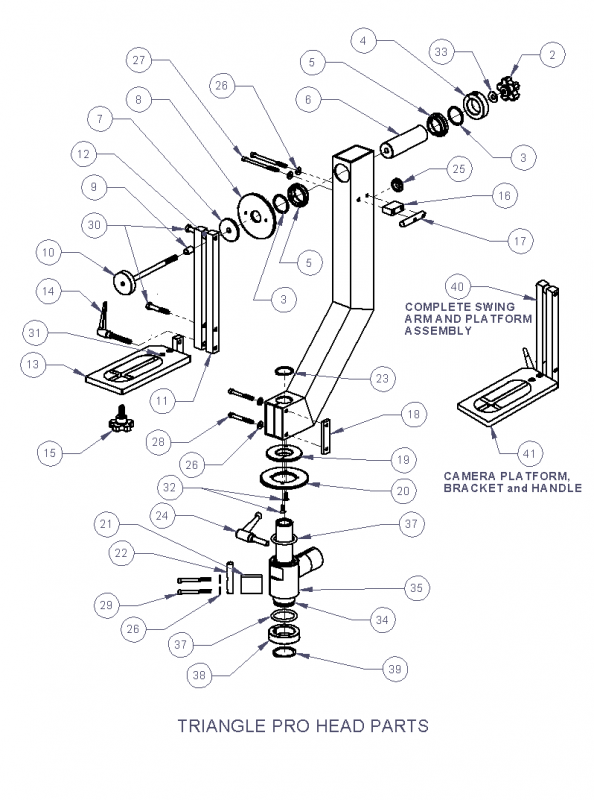

Triangle Pro Head Overview

#	Product	Price
2	Tilt Knob w/washer for Triangle Head	$46.09
3	O-Ring, Pan/Tilt, Triangle Head...	$14.74
4	1-3/8 ID Pinch Collar, One Piece,...	$23.43
5	Tilt Bearing Housing w/Bearing (set of...	$96.80
6	Tilt Shaft, Triangle	$132.00
7	Tilt Gear Spacer, Triangle	$41.47
8	Triangle 4" Tilt Gear	$64.90
9	Swing Arm Sleeve, Triangle	$14.19
10	Tilt Stud w/Nut, (3/8 -24)	$37.18
11	Swing Arm w/o Platform	$104.50
12	Swing Arm Spacer	$14.19
13	Camera Platform w/Bracket	$132.00
14	Adjustable Handle Assembly, Camera...	$17.27
15	Camera Mounting Knob w/Delrin washer	$30.36
16	Tilt Motor Pin Spacer	$49.06
17	Tilt Motor Pin	$29.81
18	Pinch Nut	$31.35
19	Pan Gear Spacer	$54.56
20	Triangle 4" Pan Gear	$72.60
21	Pan Motor Pin Spacer, Triangle Pro	$49.06
22	Pan Motor Pin	$27.39
23	1-3/8" Snap Ring, Pan, Triangle Head	$1.65
24	Expansion Joint Handle for Triangle Pro...	$32.67
25	Grommet, Keystone 752	$1.32
26	Washer, 1/4 ID x 1/2 OD, Yellow	$1.03
27	Screw, SHC, 1/4-20 x 3-1/2, BZ (set of...	$2.64
28	Screw, SHC, 1/4-20 x 2-1/4, BZ (set of...	$2.64
29	Screw, SHC, 1/4-20 x 2-1/2 BZ (set of 2)	$2.64
30	Screw, Hex, 5/16-18 x 2, BZ, GR5 (set...	$2.64
31	Screw, SHC, 5/16-18 x 1 (set of 2)	$2.64
32	Screw, FHSC, 10-24 x 5/8 BZ	$2.64
33	Washer, Belleville, 3/8 ID	$2.64
34	Pan Shaft, Triangle Pro	$237.60
35	Pan Bearing Housing, Triangle Pro	$178.20
37	O-Ring, Pan, Triangle Pro Head	$21.89
38	Pan Pinch Collar, Triangle Pro	$27.72
39	1-3/4" Snap Ring, Pan, Triangle Pro...	$2.64
40	Swing Arm, Camera Platform w/Bracket &...	$385.00
41	Camera Platform w/Bracket & Adjustable...	$178.20
42	Triangle Pro Head Sure Grip Expansion...	$193.60
